Name: HEAS Motorized Ball Valve with Manual Switch
Brand: HEARKEN
SKU: 00043
Rating: 4.1 (72 reviews)

Main Product Features

POM material gear box
Manual Override, the valve can be operated when power failure
Mini dimension and position indicator
Good sealing performance, IP65 enclosure

Application

Heat energy meters, fire work, save water system
Water saving equipment, drinking water equipment
Auto control system, industrial mini auto control equipment
Air-conditioning fan coil(HVAC)

Testing For All Actuators

All actuators manufactured by HEARKEN are individually tested. Testing is carried out to check the leakage in both internal and external. The angle of rotation and Torque values. All bodies are stamped with year, month of production, size and serial number.

Series	Working Voltage	Max. Current	Max.Torque	Open/Close Time	Control Mode	Max Pressure	Medium Temperature	Power	Size	Enclosure	Special Function
HEAS-25S	DC3-6V DC12V A/DC9-24V AC220V AC85-265V	80 mA	2.5N.m	<8S	CR01 CR02 CR03 CR04 CR05	1.0Mpa	0-90℃	<2W	DN8-32 Two way DN8-20 Three way	IP32	Wireless switch control (within 200 meters)

	Parts	Material
	Actuator housing	ABS
	Valve body	Brass / SS304/316
	Valve ball	Brass / SS304
	Stem	Brass / SS304/316
	Ball seat	PTFE
	Seal	EPDM

Brass Balll Valve	Port Type	Size	d	L	H	W
	Both Female Screw(Full Port)	DN8	8	46	31	0.357
		DN15	15	57	38	0.433
		DN20	20	71	45	0.513
		DN25	23.5	72	49	0.603
	Both Female Screw(Reduce Port)	DN8	8	46	31	0.356
		DN15	15	66	38	0.448
		DN20	20	72	47	0.608
		DN25	25	76	60	0.82
	Vertical Tee	DN15	12	63	49	0.434
	Vertical Tee	DN20	15	66	53	0.492
	Male and Femail Screw	DN15	18	63	38	0.432
	Male and Femail Screw	DN20Reducing	15	66	38	0.462
	Both Male Screw	DN15	15	68	38	0.424
Stainless Stell Ball Vale	Both Female Screw	DN8	8	46	31	0.364
		DN10Reducing	8	46	30.1	0.368
		DN15	15	55	38	0.44
		DN20Reducing	15	66	39	0.513
		DN20	20	71	45	0.508
		DN25Reducing	20	75	47	0.608
		DN25	25	72	49	0.617

WIRING
CR01 (2 WIRES)	CR02 (3 WIRES)	CR03 (3 WIRES)	CR04 (2 WIRES)	CR05 (5 WIRES)
Standard control	Two point control	One point control	Auto-return	Signal feedback
	INSTRUCTION FOR MANUAL OVERRIDE

	It is only permitted to use when power-off.
	Lift the hand-wheel, and turn it left or right until the valve is in place.
	When the black line on the indicator is horizontal, the valve is on; when vertical, the valve is off.

	CR01 Voltage : DC3-6V/12V/24V
	Connecting SW with OPEN (RED Wire connect with positive,Green Wire connect with negative), the valve opens, getting the pisition, motor automatically power off, the valve remains fully open position. Connecting SW with CLOSE (Green Wire connect with positive,Red Wire connect with negative), the valve close, getting the pisition, motor automatically power off, the valve remains fully close position.
	CR02 Voltage : DC3-6V/12V/24V
	Connecting SW with OPEN the valve opens, getting the pisition,motor automatically power off, the valve remains fully open position. Connecting SW with CLOSE the valve close, getting the pisition,motor automatically power off, the valve remains fully close position. Noted: AC24C/AC220V can only be used for CWX-50K series electric valve.
	CR03 Voltage : DC3-6V/ADC9-24V/AC85-265V
	SW closed, the valve opens, getting the position, motor automatically power off, the valve remains fully open position. SW open, the valve close, getting the position, motor automatically power off, the valve remains fully close position. Note: When power is DC voltage, Red Wire is "+" and Blue Wire is "-"
	CR04 Voltage : DC3-6V/ADC9-24V/AC85-265V
	SW closed, the valve opens, getting the position, motor automatically power off, the valve remains fully open position. SW open, the valve close, getting the position, motor automatically power off, the valve remains fully close position.

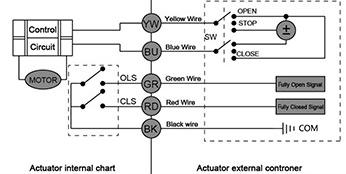

	CR05 Voltage : DC3-6V/12V/24V
	Connecting SW with OPEN, the valve opens, getting the position green wire output the OLS signal, the controller test the signal OLS, connect SW to STOP (power off the valve immediately), the valve stops and remains fully open position. Connecting SW with CLOSE, the valve close, getting the position red wire output the CLS signal, the controller test the signal CLS, connect SW to STOP (power off the valve immediately), the valve stops and remains fully close position. Note: Please make sure the signal wires "red", "black" and "greed" be connected at first, then connect the power wire "yellow" and "blue"
