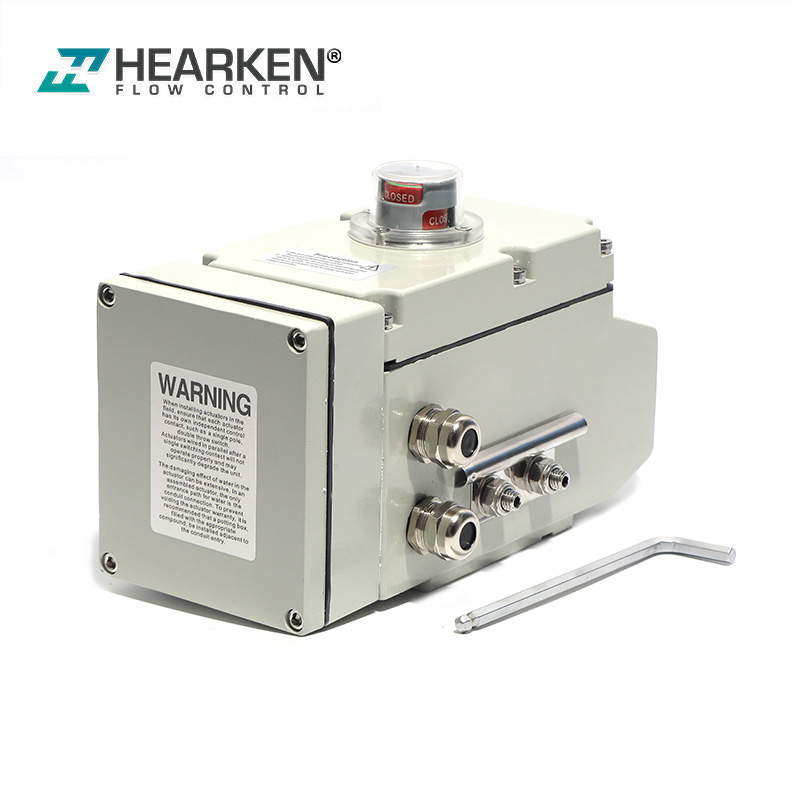

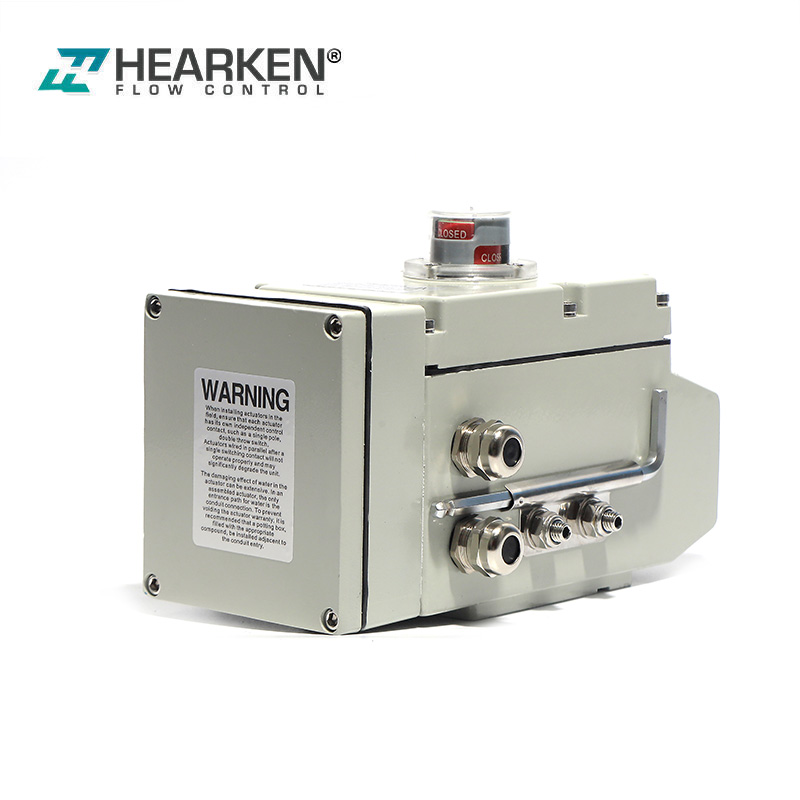

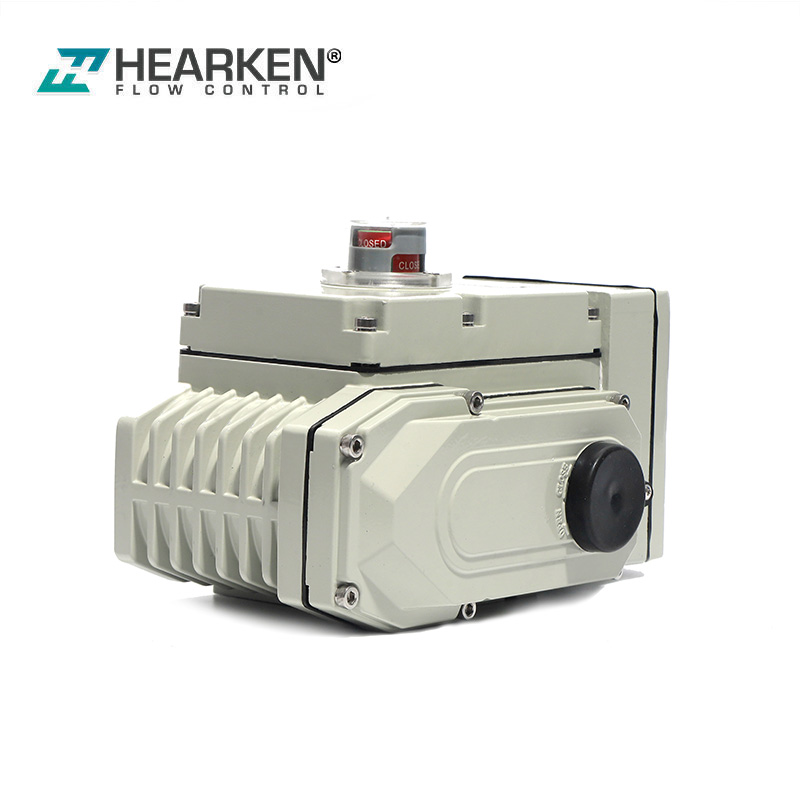

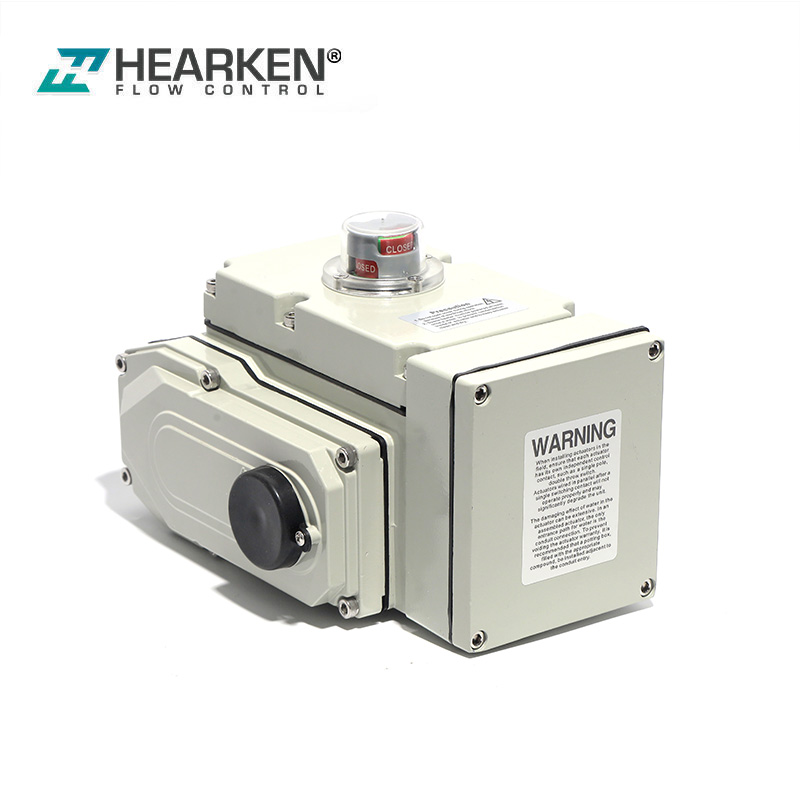

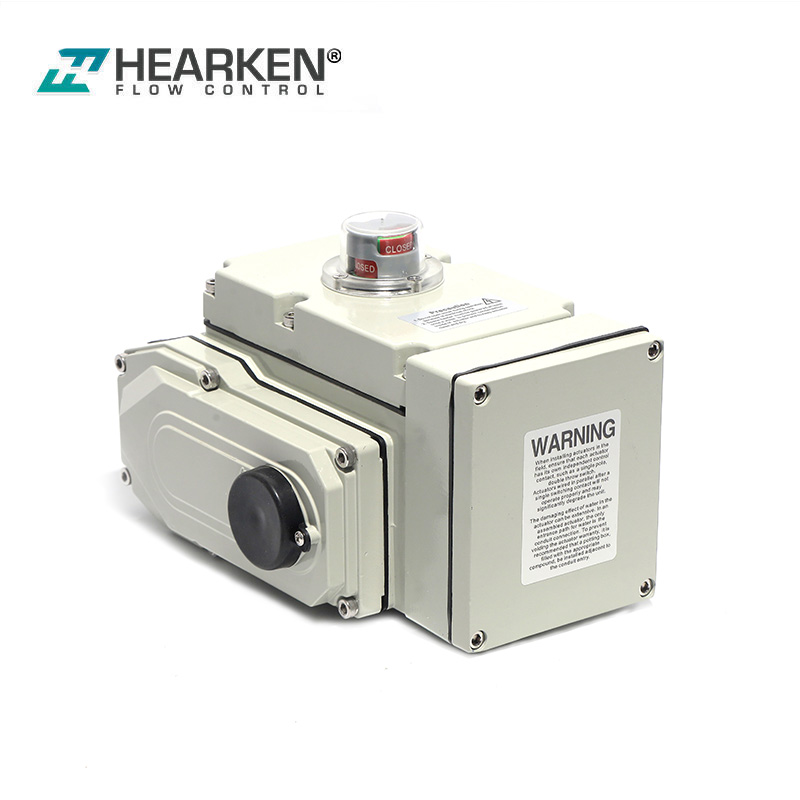

Name: Modulating Type Electric Actuator
Brand: HEARKEN
SKU: 00446
Rating: 4.1 (273 reviews)

Description

HEA Series Quarter-Turn Electric Actuator is used for controlling 0~270 degree Rotation valves and other similar products,such as butterfly valve,ball valve,damper,flapper valve,cock valve etc...lt widely applies to petroleum,chemical, water treatment,shipping,peper,making,power plant and other industries.

Drived by 380V/220V/110VAC OR 24V/110VDC Power,Inputs 4~20mA Or0~10 VDC control signal,Moves valve to the right position, and achieve to automatic control.The Maximum output toque is 2000 N.m

Main Product features

Designed for small quarter-turn applications.
Protection class to IP67, NEMA4 and 6
The Actuator can automate the valves requiring up to 270 degree rotation.To help protect the components and extend the actuator's life, an anti-condensation A thermal protector is provided to protect the motor from over heating.

Technical Parameter and Specifications (On/Off or Modulating Version)

Model	Max Output Torque (N.m)	Operating Time 90°(Sec.) 220VAC/24VDC	Drive Shaft(mm)				Motor (W)	Single-phsae rated current(A) 220VAC/24VDC	Weight (kg)	Flange Size
			Square	Deep	Round	Deep
HEA003	30N.m	10//	9X9	13.5	Ø12.6	26	8	0.15//	2.5	F03/F05
			11X11	15.5
HEA005	50N.m	30/15	11X11	15.5	Ø12.6	26	10	0.25/2.2	4.1	F05/F07
			14X14	18
HEA008	80N.m	30/15	11X11	15.5	Ø15.78	26	10	0.25/2.2	4.1	F05/F07
			14X14	18
HEA010	100N.m	30/15	14X14	18	Ø15.78	28	15	0.35/3.5	5.1	F05/F07
			17X17	22.5	Ø 18.95
HEA015	150N.m	30/15	14X14	18	Ø18.95	28	15	0.37/3.5	5.1	F05/F07
			17X17	22.5
HEA020	200N.m	30/15	22X22	26	Ø22.13	45	45	0.3/7.2	9.4	F07/F10
HEA040	400N.m	30/15	22X22	26	Ø28.48	45	60	0.33/7.2	9.4	F07/F10
HEA060	600N.m	30/15	27X27	32.5	Ø31.65	45	90	0.33/7.2	9.8	F07/F10
HEA080	800N.m	40/20	27X27	32.5	Ø31.65	45	180	0.47/11	15	F10/F12
HEA100	1000N.m	40/20	27X27	32.5	Ø31.65	45	180	0.47/11	15	F10/F12
HEA200	2000N.m	45/22	27X27	32.5	Ø31.65	45	180	1.5/15	15.3	F10/F12

Performance Features

Fuction:	On/off or modulating
Material
Housing:	Aluminum alloy,epoxy powder coated
Gear:	Steel/aluminum bronze
Screws:	Stainless steel
Indicator Cover:	Polycarbonated
Shaft/Adaptor:	Alloy steel
Seal:	NBR
Lubrication:	Aluminum based grease
Technical Date
Power Supply:	24VDC,110VAC,220VAC
Motor:	Squirrel cage asynchronous motor
Limit Switch	SPDT,250VAC 10A,each for open and close positions
Rotation:	90° （±10°）other rotation on request
Manual Operation:	Mechanical handle standard
Conduit Entry:	2 x M18
Operating Temp:	-20°C to + 70°C
Ambient Humidity:	Max.90%RH
Vibration Tested:	XYZ10g,0.2~34Hz,30 minutes

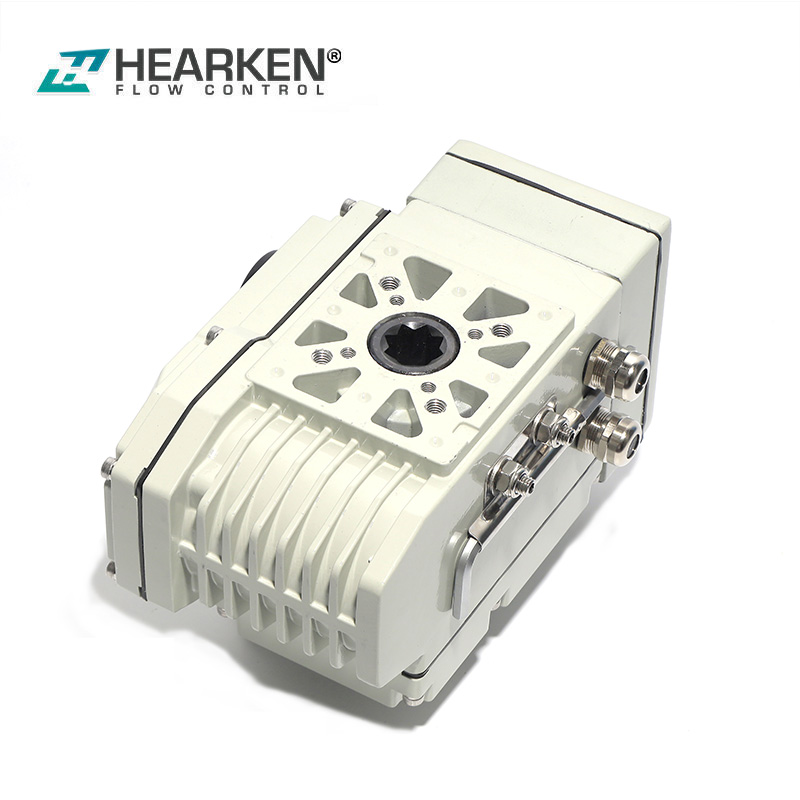

Mounting:	ISO5211
Torque Output:	30Nm to 1000Nm (2000Nm on request)
Self-locking device:	Self-locking by worm and worm gear

Options Available

Space Heater, 7 ... 10W (110/220VAC)*

Stall Protection, internal overheating protection, open @ 120oC / close @ 97oC (± 5oC)*

Position Feedback Potentiometer (1K ... 10K)*

Position Feedback Sensor with Current output (4 ... 20mA)*

Proportional Control Unit for modulating control
(input/output signal, 4 ... 20mA, 1 ... 5 VDC, 1 ... 10VDC)*

Field control unit
(Local control open/stop/close switch, Local/remote control switch)*

Power Failure Self Reset

Standard & Technical datas

Indicator	Dome Type( Option: LED Light Inside)	Enclosure	Waterproof Level IP67,NEMA4 and 6
Ambient Temp	-20℃~+70℃	Power Supply	AC110/220V 1PH±10% 50/60HZ.DC24V
Limit Switches	2 open/close+dry contact 2 open/close	Travel Angle	90º±5°(Extension up to 270º)
Manual Operation	Hex key (Option: Handwheel)	Self Locking	Provide self locking by worm gear
Space Heater	5W(110/230VAC,24VDC)	Conduit entries	2PF 1/2''(Option:M20x1.5,NPT1/2'')
Lubrication	Aluminum base grease(EP type)	External Coating	Dry powder, epoxy polyester
Surface Treatment	Anodizing	Material	Aluminum Alloy, Steel, Alloy Bronze

Testing For All Actuators

All actuators manufactured by HEARKEN are individually tested. Testing is carried out to check the leakage in both internal and external. The angle of rotation and Torque values. All bodies are stamped with year, month of production, size and serial number.

Modulating Type Electric Actuator
